PAWELL "DOVHA-1" 80,000 mAh Battery Pack
Новинка
The PAWELL "DOVHA-1" 80,000 mAh is a time-tested 6S configuration battery pack for large UAVs and strike bomber platforms like the VAMPIRE. Thanks to reliable Li-NMC chemistry, this UAV battery pack ensures maximum energy reserves and high efficiency at an affordable price for power-intensive missions.
Key Advantages:
- Economic Benefit — The cost of two "DOVHA-1" battery packs equals the price of one standard VAMPIRE battery pack, allowing you to optimize expenses.
- Enhanced Protection — A robust shockproof housing with corner guards prevents damage, while the handle ensures convenient transportation.
- High Capacity — 1,776 Wh at a weight of 7.2 kg provides a capacity increase of over 21% compared to 66 Ah alternatives.
- Convenient Operation — A built-in LCD screen displays the remaining charge, and compatibility with standard chargers accelerates preparation.Simple Integration — The QS-8S connector, 6AWG cable, and zip-tie mounting guarantee quick installation on large platforms.
The PAWELL "DOVHA-1" 80,000 mAh is a time-tested 6S configuration battery pack for large UAVs and strike bomber platforms like the VAMPIRE. Thanks to reliable Li-NMC chemistry, this UAV battery pack ensures maximum energy reserves and high efficiency at an affordable price for power-intensive missions.
Key Advantages:
- Economic Benefit — The cost of two "DOVHA-1" battery packs equals the price of one standard VAMPIRE battery pack, allowing you to optimize expenses.
- Enhanced Protection — A robust shockproof housing with corner guards prevents damage, while the handle ensures convenient transportation.
- High Capacity — 1,776 Wh at a weight of 7.2 kg provides a capacity increase of over 21% compared to 66 Ah alternatives.
- Convenient Operation — A built-in LCD screen displays the remaining charge, and compatibility with standard chargers accelerates preparation.Simple Integration — The QS-8S connector, 6AWG cable, and zip-tie mounting guarantee quick installation on large platforms.
⚙️ Prototype: What does this mean?
The PAWELL StarBlock charging station is 100% functional and ready for operation, but is currently undergoing final field trials. This means that prior to launching into mass serial production, minor structural or visual refinements based on actual feedback are possible. That is why a discounted price applies to this limited test batch.
SHARE
SHARE

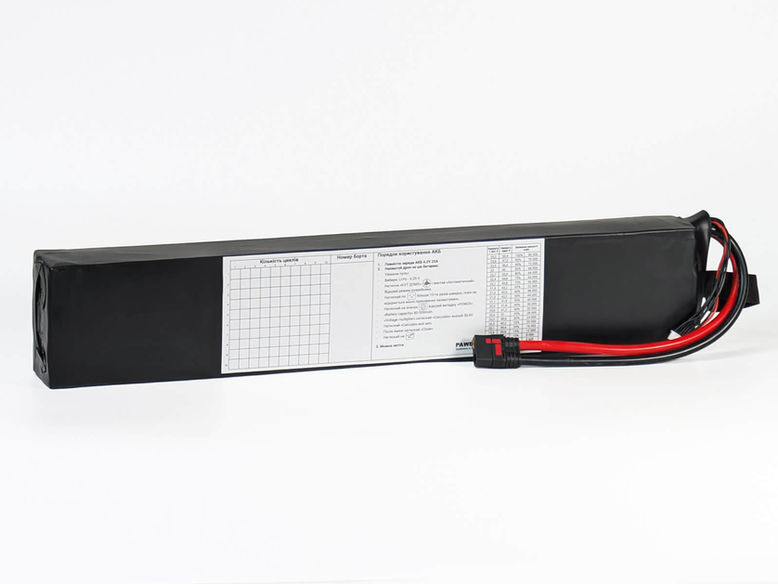

Technical details
DOVHA-1
Electrical characteristics:
- 6s configuration
- LiNMC elements
- Rated voltage: 22.2 V
- Capacity: 80 Ah (1776 Wh)
- Voltage range: 15-25 V
- Peak discharge current: 600A (3C/5C)
- Operating temperature: from -20°C to +60°
Physical characteristics:

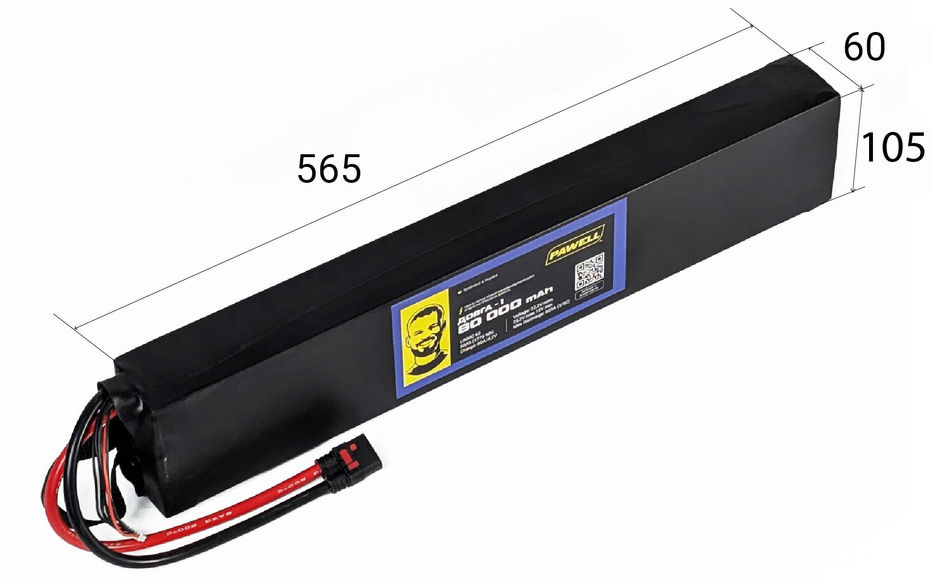

- Size (L × W × H): 565 × 105 × 60 mm
- Weight: 7.3 kg
- Outer material: thick layer of heat shrink
Charging characteristics:
- Recommended: 15A/4.2V (maximum add. 40A/4.2V)
Connectors:
- Power cable: AWG6
- Power connector: QS-8s
Charge indicator:
- LCD display with charge indicator
Operating temperature:
- Charging: 0°C to 45°C
- Discharge: –20°C to 60°C
Storage temperature:
- Short-term (<1 month): –10°C to 45°C
- Long-term (>1 month): 0°C to 25°C
- Humidity: ≤85% (relative humidity)
Product catalog
RELATED PAWELL BATTERY PACKS
PAWELL "DOVHA-1" 80,000 mAh Battery Pack
Наявність
The PAWELL "DOVHA-1" 80,000 mAh is a time-tested 6S configuration battery pack for large UAVs and strike bomber platforms like the VAMPIRE. Thanks to reliable Li-NMC chemistry, this UAV battery pack ensures maximum energy reserves and high efficiency at an affordable price for power-intensive missions.
Key Advantages:
- Economic Benefit — The cost of two "DOVHA-1" battery packs equals the price of one standard VAMPIRE battery pack, allowing you to optimize expenses.
- Enhanced Protection — A robust shockproof housing with corner guards prevents damage, while the handle ensures convenient transportation.
- High Capacity — 1,776 Wh at a weight of 7.2 kg provides a capacity increase of over 21% compared to 66 Ah alternatives.
- Convenient Operation — A built-in LCD screen displays the remaining charge, and compatibility with standard chargers accelerates preparation.Simple Integration — The QS-8S connector, 6AWG cable, and zip-tie mounting guarantee quick installation on large platforms.
SHARE
Technical details
DOVHA-1
Electrical characteristics:
- 6s configuration
- LiNMC elements
- Rated voltage: 22.2 V
- Capacity: 80 Ah (1776 Wh)
- Voltage range: 15-25 V
- Peak discharge current: 600A (3C/5C)
- Operating temperature: from -20°C to +60°
Physical characteristics:
- Size (L × W × H): 565 × 105 × 60 mm
- Weight: 7.3 kg
- Outer material: thick layer of heat shrink
Charging characteristics:
- Recommended: 15A/4.2V (maximum add. 40A/4.2V)
Connectors:
- Power cable: AWG6
- Power connector: QS-8s
Charge indicator:
- LCD display with charge indicator
Operating temperature:
- Charging: 0°C to 45°C
- Discharge: –20°C to 60°C
Storage temperature:
- Short-term (<1 month): –10°C to 45°C
- Long-term (>1 month): 0°C to 25°C
- Humidity: ≤85% (relative humidity)
Video review
High energy density
High energy density keeps the design lightweight without compromising performance or autonomous operation time. Our battery packs achieve maximum ratings of 400+ Wh/kg.
Automated laser welding
Robotic laser welding delivers an ultra-high precision of 0.01–0.05 mm, ensuring greater reliability during battery pack operation.
Serial production
Thanks to automation and well-established processes, we guarantee the production of large batches while maintaining the high quality of every single unit for your platform.
Technical support
Our team remains available after your purchase to provide technical support and consultations. We stand behind the reliability of every solution we manufacture.
Need more details? Fill out the form to receive the full datasheet for this battery pack.
