PAWELL Solid-State 30,000 mAh | FPV Drone Battery Pack
PAWELL Solid-State 30,000 mAh is a battery model designed for fast missions. The battery is designed for platforms where autonomy, power stability, and weight-to-efficiency ratio are critical.
The battery is aimed at medium-sized UAVs and medium-range drones, where every gram of weight affects the duration of the mission. Solid-State technology with a high energy density of 360 Wh/kg ensures stable operation and increased safety compared to classic Li-ion or LiPo batteries, supporting operation with high load currents up to 240 A (8C).
The PAWELL Solid-State 30,000 mAh battery is used on agricultural drones, cargo and specialized platforms, where continuous operation of the equipment, preservation of the payload, and efficiency of every gram of the system are important.
High energy efficiency — 756 Wh at a weight of 2.15 kg and a density of 360 Wh/kg, which provides a weight reduction of ~30% compared to typical Li-ion / LiPo analogues of the same energy capacity.
High load operation - supports up to 8C discharge for peak current systems.
Compatibility with 6S platforms - the nominal voltage of 22.2 V ensures integration into bombers (Vampire, etc.), hexa- and octocopters (Matrice 600), agricultural drones (DJI Agras T10), custom 6S assemblies, as well as wings with a span of 2-3 m.
Resistance to low temperatures — stable operation at discharge down to –20 °C.
Quick preparation for re-launch — standard charging current of 30 A.
Take-off mass optimization - 30 Ah capacity at 2.15 kg weight allows for increased flight duration or payload without exceeding mass restrictions.
Technical details
Solid-State 30,000
Electrical characteristics:
- 6S1P configuration
- Solid-State Elements
- Rated voltage: 22.2 V
- Capacity: 30 Ah (667 Wh)
- Voltage range: 15-25.2 V
- Peak discharge current: 150 A (5C)
- Operating temperature: from -20°C to +65°C
Physical characteristics:
- Size (L × W × H): 190 × 84 × 78 mm

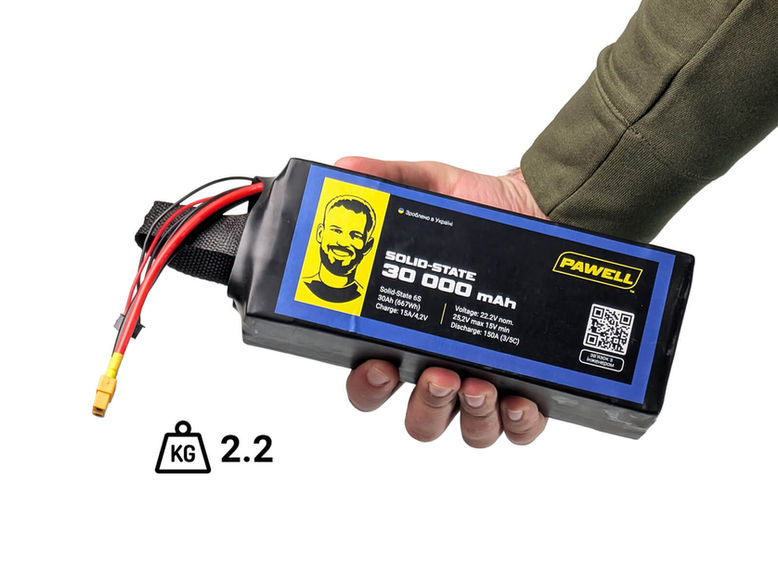

- Weight: 2.15 kg
- Outer material: thick layer of heat shrink
Charging characteristics:
- Recommended: up to 15A/4.2V
Connectors:
- Power cable: AWG10
- Power connector: XT-90
Operating temperature:
- Charging: 0°C to 45°C
- Discharge: –20°C to 65°C
Storage temperature:
- Short-term (<1 month): –10°C to 45°C
- Long-term (>1 month): 0°C to 25°C
- Humidity: ≤85% (relative humidity)
High energy density
High energy density keeps the design lightweight without sacrificing performance or battery life. Our builds reach maximum values of 400+ Wh kg
Automated laser welding
Robotic laser provides extremely high welding accuracy of 0.01–0.05 mm, which ensures greater reliability in battery operation
Serial production
Thanks to automation and proven processes, we guarantee the production of large batches, maintaining the high quality of each unit for your board.
Technical support
Our team is in touch after the purchase to provide technical support or advice, we are responsible for the reliability of each manufactured solution.
